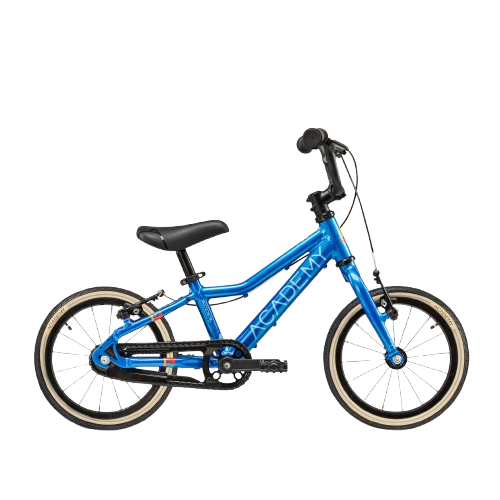

Fahrrad Academy Grade 2 Blue 14" - 2025

Technical Specifications

• Wheels: 14" x 1.5" x 16H, aluminum, black

• Tires: VEE TIRE Rail 14"x1.50 (40-254), reflective stripes, 72 TPI

• Frame Material: Triple-butted aluminum

• Frame Shape: Diamant Knick

• Weight: 5.30 kg

• Drivetrain: Single-speed, freewheel

• Crankset: ACADEMY 25T, 90 mm (aluminum)

• Cassette/Freewheel: 15T

• Rear Hub: Aluminum, 14G/16H

• Front Hub: Aluminum, 14G/16H

• Front Brake: V-Brake (aluminum)

• Rear Brake: V-Brake (aluminum)

• Handlebar: BMX style, 470 mm

• Stem: ACADEMY AHEAD, 50 mm

• Seatpost: 25.4 mm x 200 mm (aluminum)

• Saddle: DDK with integrated seatpost

• Pedals: 95x80x23 mm (ball bearing, with reflectors, 9/16 thread)

• Chain Guard: Hebie Chainlooper

Bike Geometry

• Frame Height: 21 cm

• Seat Tube Length: 205 mm

• Seat Angle: 68.0°

• Head Tube Length: 90 mm

• Steering Angle: 68.0°

• Top Tube Length (horizontal): 350 mm

• Rear Triangle Length: 267 mm

• Wheelbase: 631 mm

• Minimum Saddle Height: 410 mm

• Maximum Saddle Height: 500 mm

• Crank Arm Length: 90 mm
