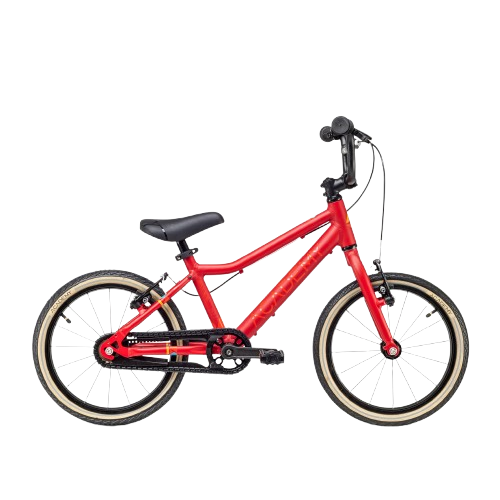

Bike Academy Grade 3 Red 16" - 2025
- Wheel size: 16”
- Weight: 5.50 kg
- Frame: Triple shaded aluminum
Technical Details
-
Wheels: 16" x 1.5" x 16H, aluminum, black
-
Tires: VEE TIRE Rail 16"x1.50 (40-305), Skinwall Synthesis, reflective stripes, 90 TPI
-
Frame Material: Triple-butted aluminum
-
Frame Shape: Diamond Knick
-
Weight: 5.50 kg
-
Drive: Single-speed freewheel
-
Crankset: ACADEMY 25T, 100mm, aluminum (front)
-
Cassette/Freewheel: 15T
-
Rear Hub: Aluminum, 14G/16H, black
-
Front Hub: Aluminum, 14G/16H, black
-
Front Brake: V-Brake (aluminum)
-
Rear Brake: V-Brake (aluminum)
-
Handlebar: BMX style, 470 mm
-
Stem: ACADEMY AHEAD, 50mm
-
Seat Post: 25.4mm aluminum
-
Saddle: DDK, integrated with seat post
-
Pedals: 95x80x23mm, ball bearing, black with reflectors, 9/16 thread
-
Chain Guard: Hebie Chainlooper
Bike Geometry
-
Frame Height: 26 cm
-
Seat Tube Length: 255 mm
-
Seat Angle: 68.0°
-
Head Tube Length: 100 mm
-
Steering Angle: 68.0°
-
Top Tube Horizontal Length: 397 mm
-
Bottom Triangle Length: 280 mm
-
Wheelbase: 676 mm
-
Minimum Saddle Height: 490 mm
-
Maximum Saddle Height: 570 mm
-
Crank Arm Length: 100 mm
-
ISO Norm: ISO 8098
